DODO

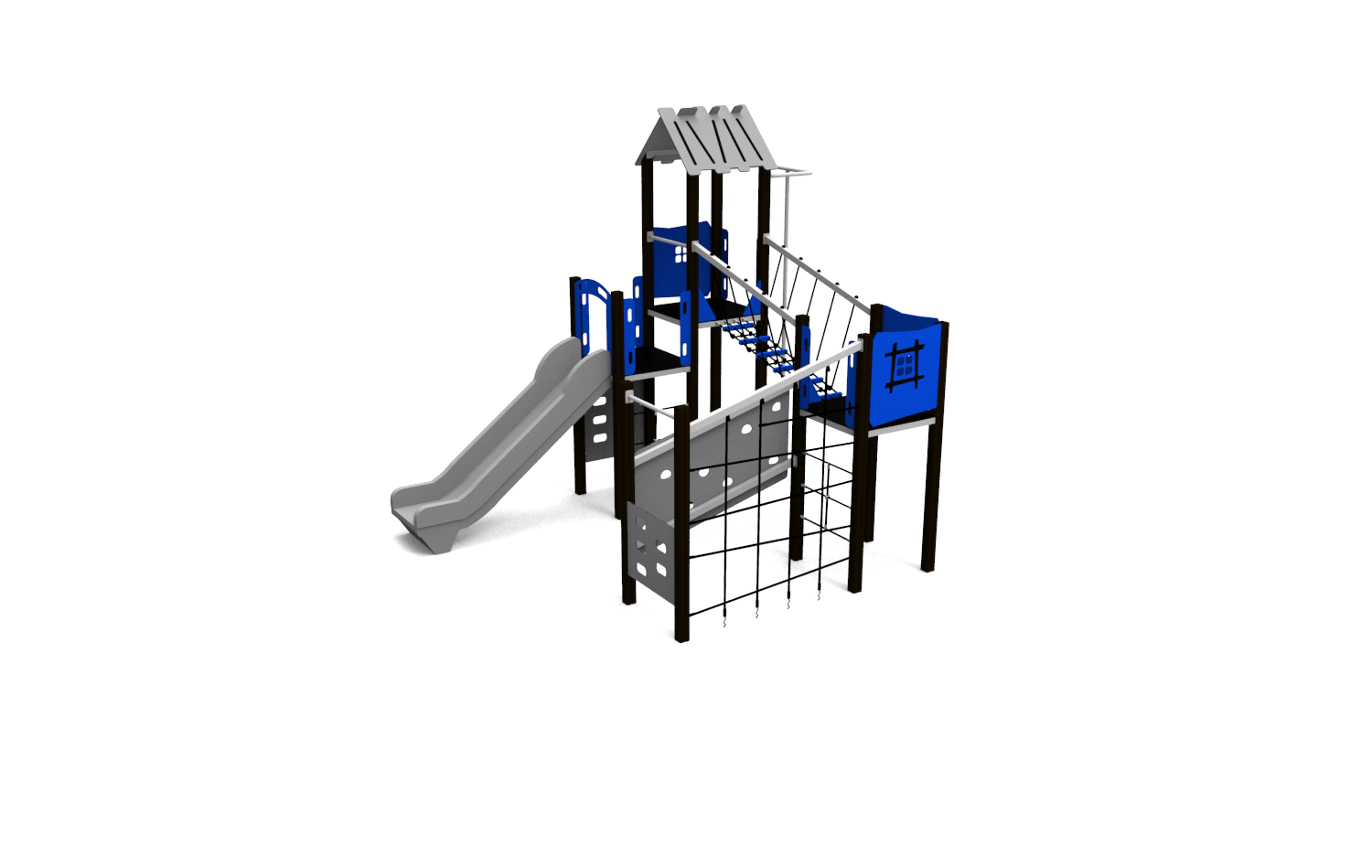

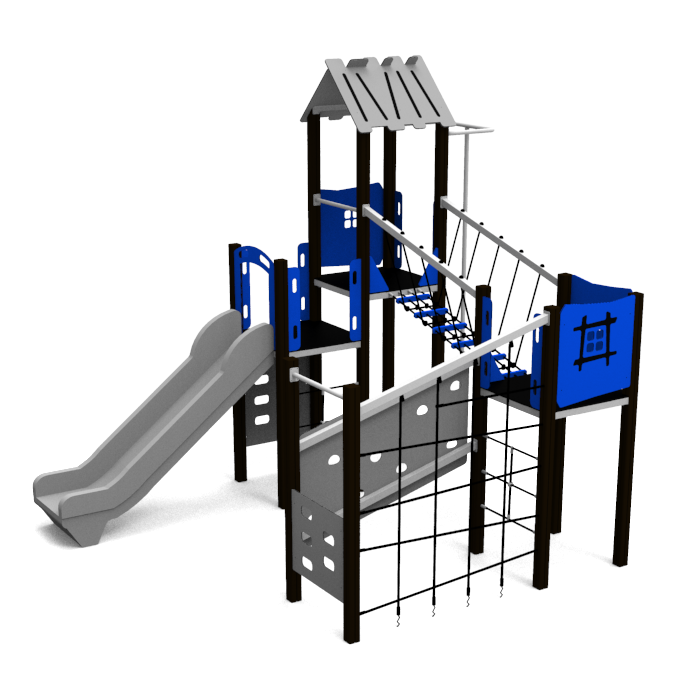

Climbing tower combination, three platforms, five climbing walls,  rope bridge, slide and firemans pole.











                      DODO
















stock

















                      Product no.:

                            A7564 hdpe






                        Dimensions:


                                    4185 x 3435 x 3735 mm






                        Safety area:


                                    7880 x 6555 mm / 40m2






                        Critical fall height:


                                    1800 mm






                        User group:


                                    5-12 years






                        Platform height:


                                    1800 mm













































Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Rope: 16mm PE rope with steel reinforcement
