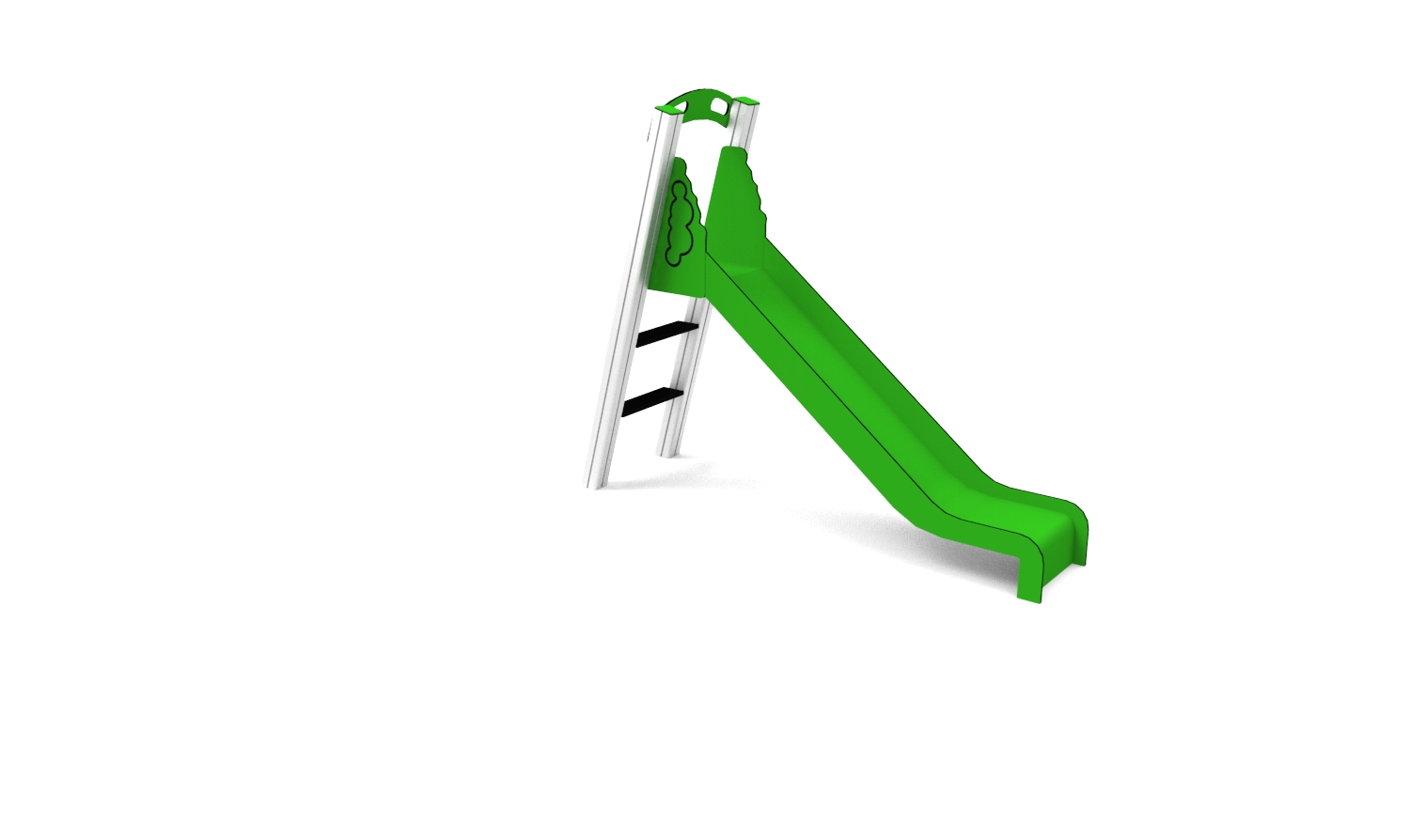

SLIM




Single slide with stairs.











                      SLIM
















stock

















                      Product no.:

                            A9058 hdpe






                        Dimensions:


                                    2210 x 620 x 1740 mm






                        Safety area:


                                    5660 x 3640 mm






                        Critical fall height:


                                    995 mm






                        User group:


                                    3-12 years






                        Platform height:


                                    995 mm















































Structural poles: Aluminium profile 90x90 mm with eloxed surface, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness, Screws and connecting material: Stainless steel.
