NAOMI plus

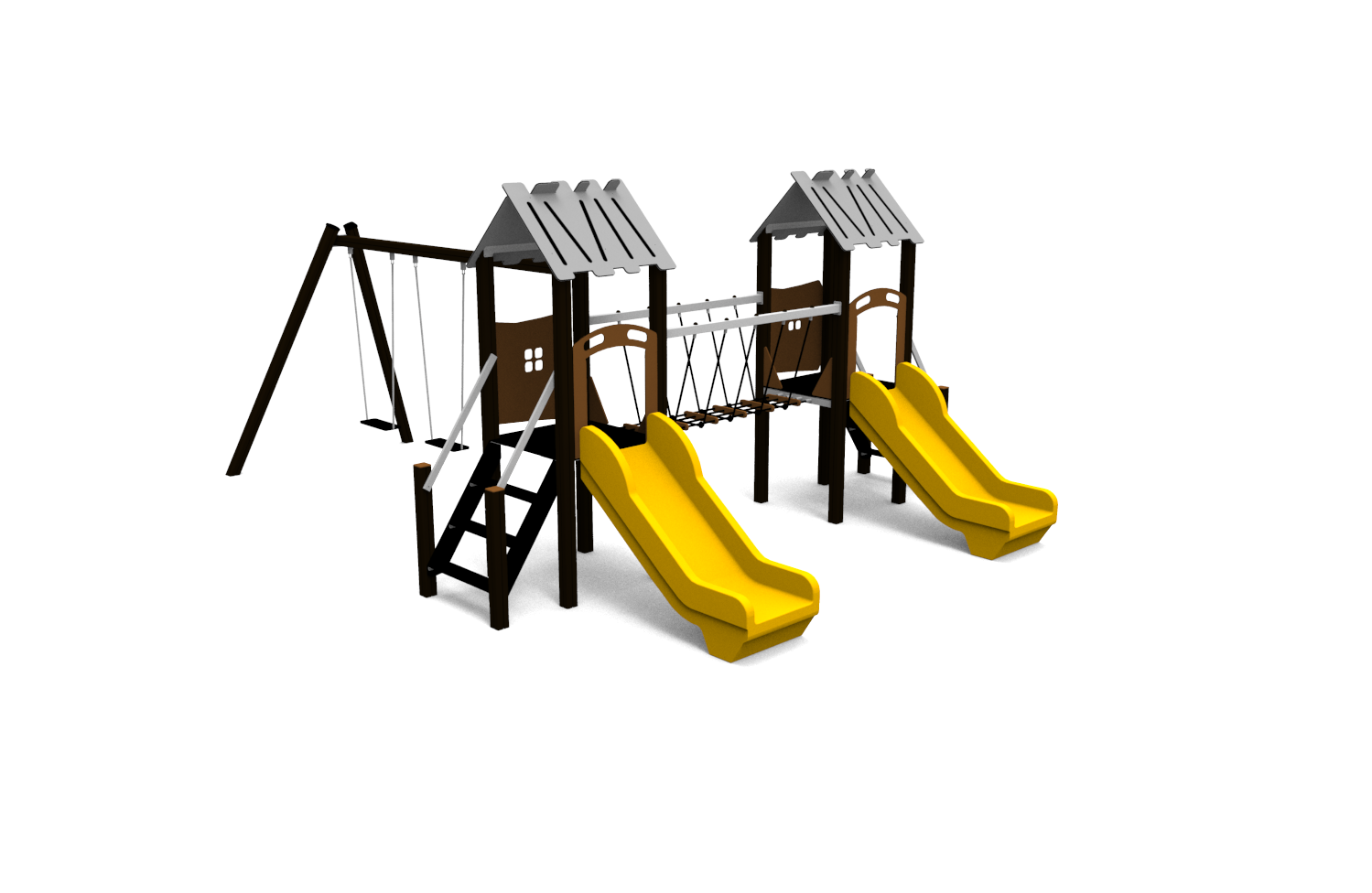

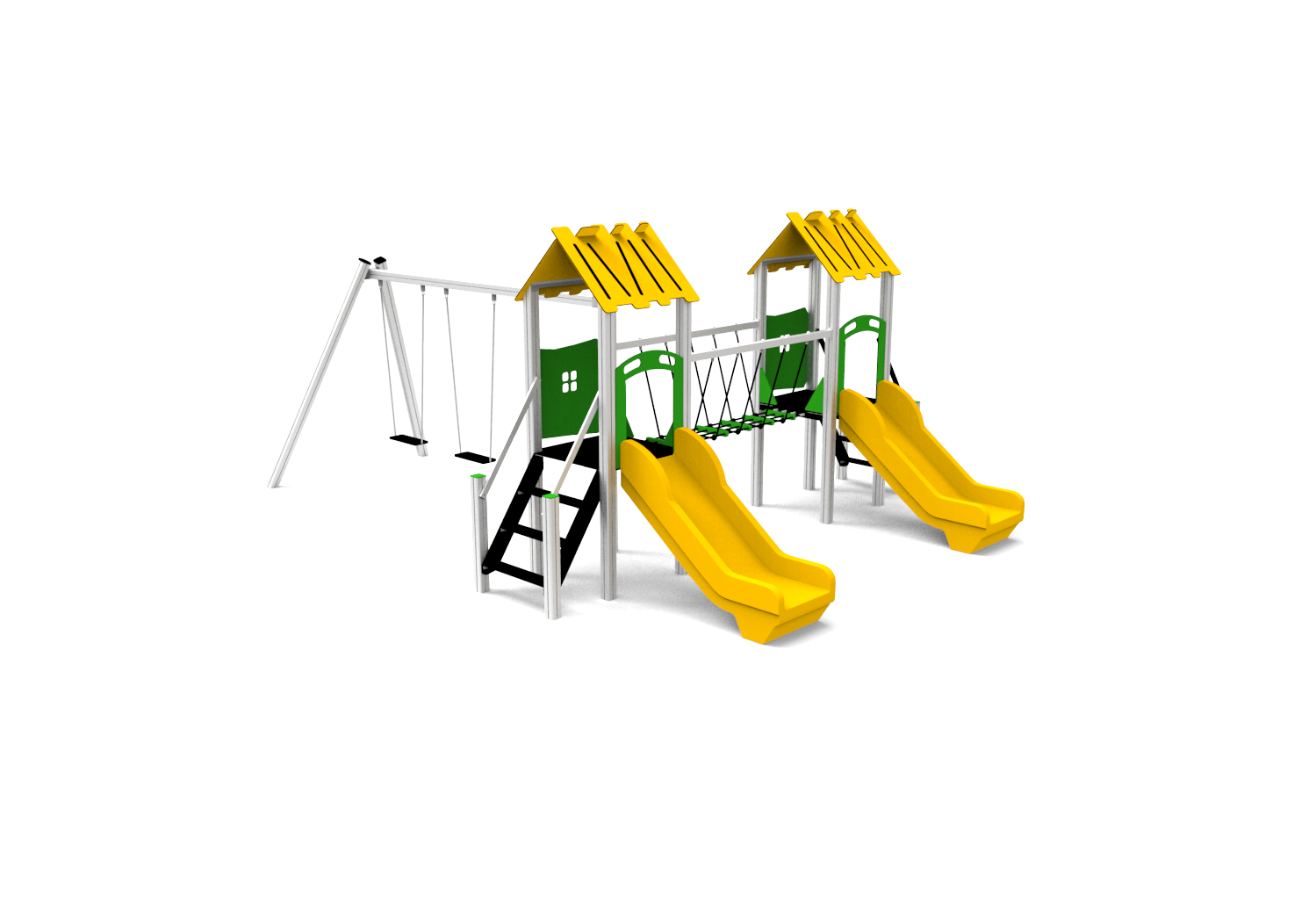

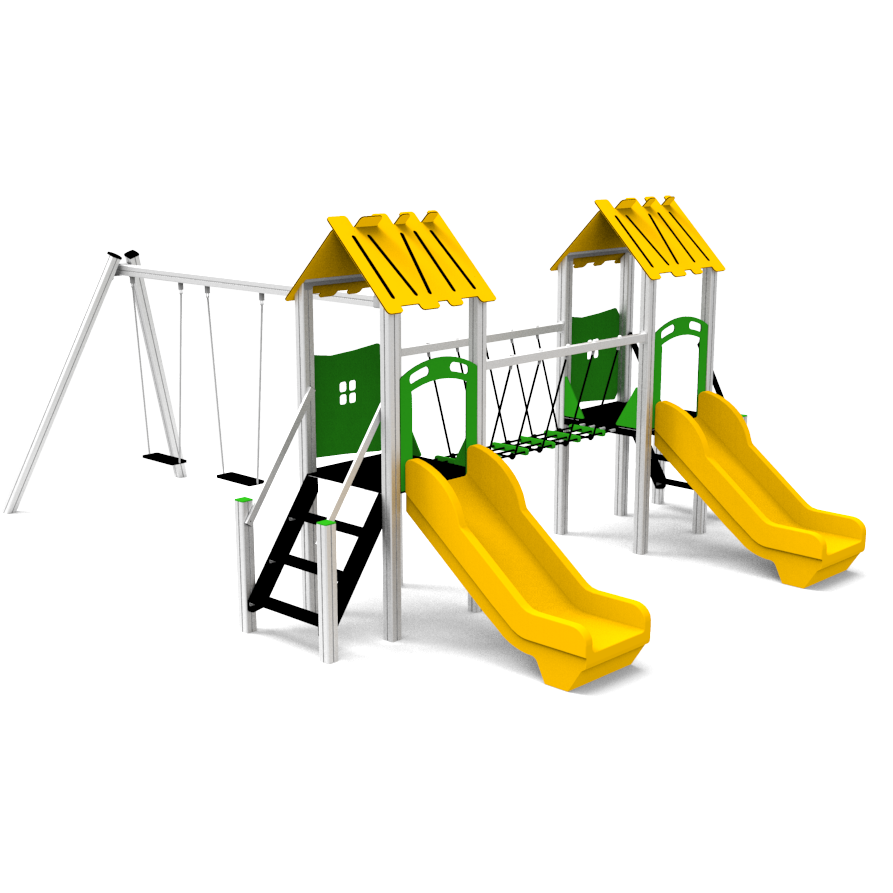

Two towers with wobbly bridge, two slides, stairs and, climbing wall and double swing.



Product no.: A7524.1 hdpe

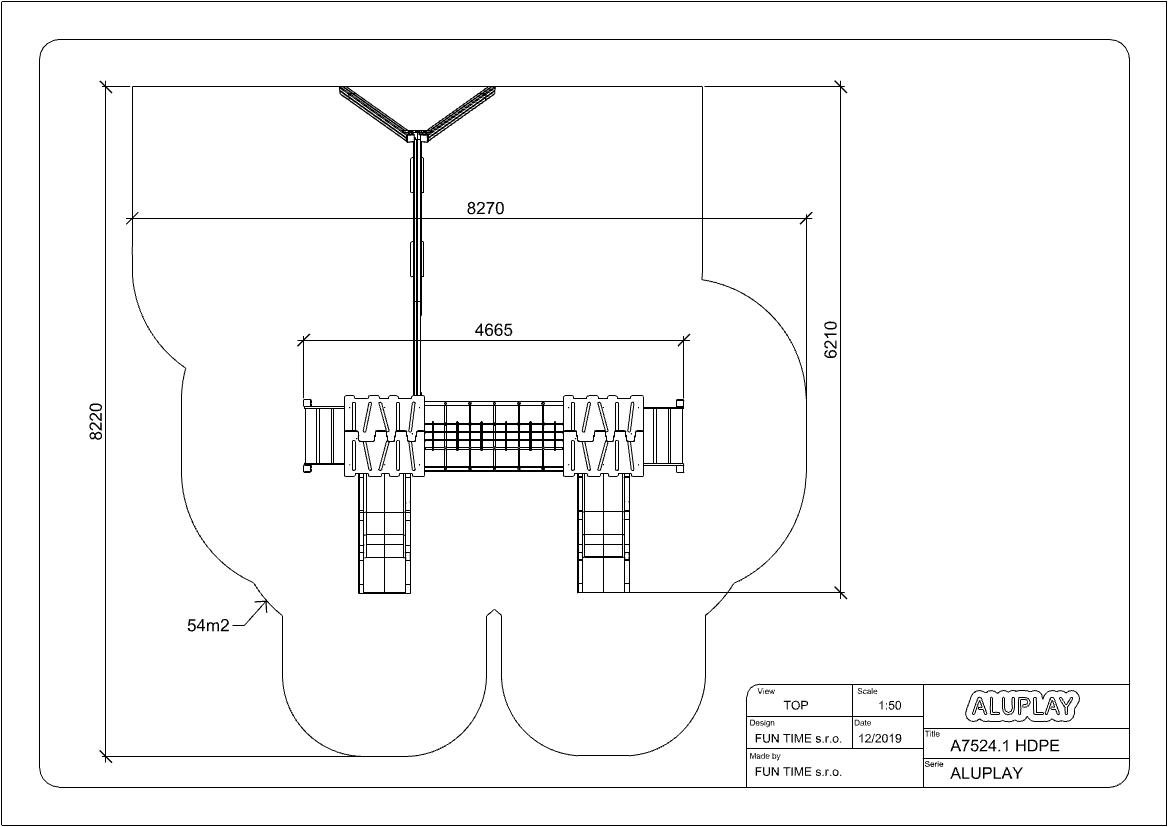

Dimensions: 4665 x 6210 x 2700 mm
Safety area: 8270 x 8220 mm / 54m2
Critical fall height: 1250 mm
User group: 3-12 years
Platform height: 990 mm

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Rope: 16mm PE rope with steel reinforcement
