LEDA 4

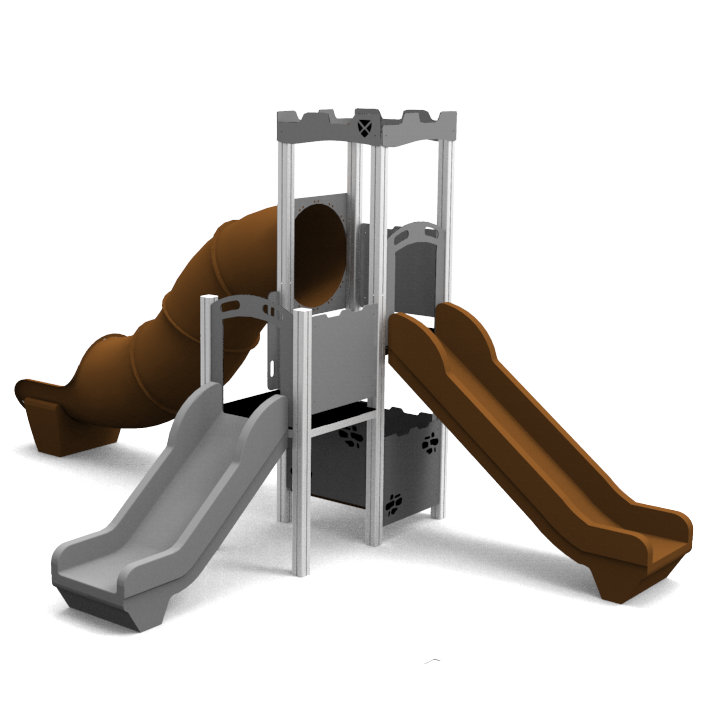

Double tower with two PE slides, one PE Tunel slide and one rope climber

stock



Product no.: A7204.4 hdpe

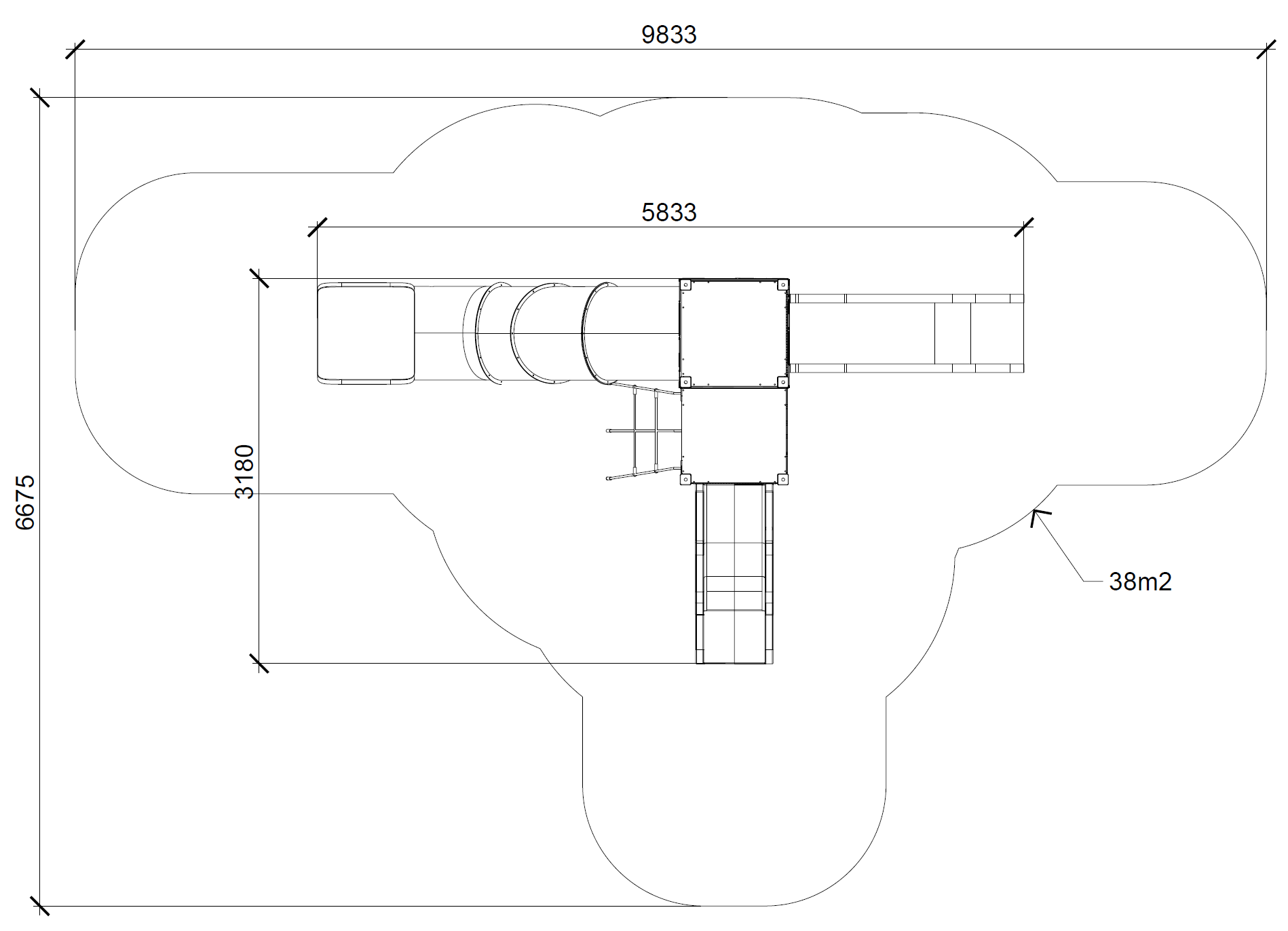

Dimensions: 5833 x 3180 x 2970 mm
Safety area: 9833 x 6675 mm / 38m2
Critical fall height: 1400 mm
User group: 5-12 years
Platform height: 1400 mm

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Rope: 16mm PE rope with steel reinforcement
