DAGOS mini

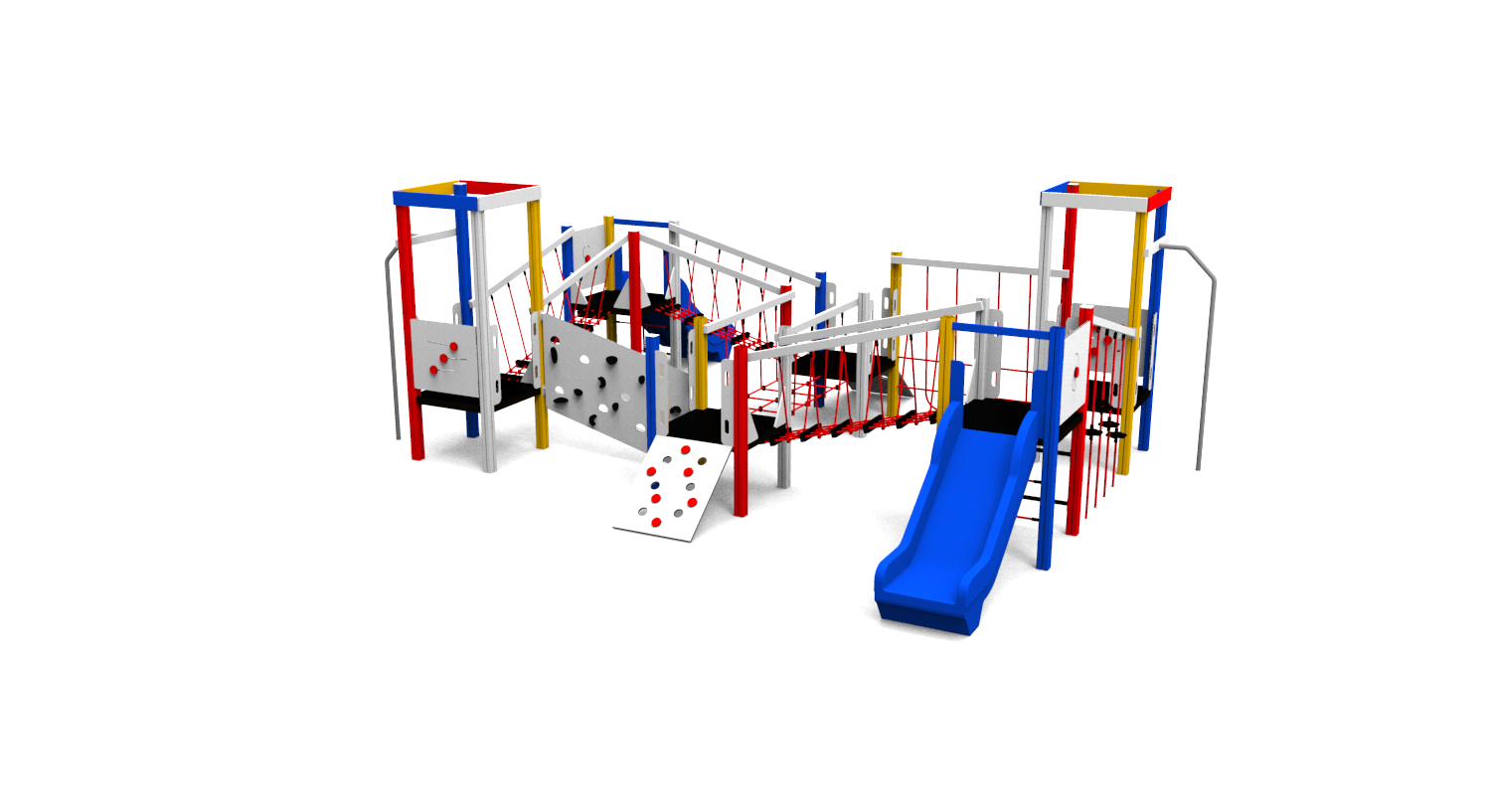

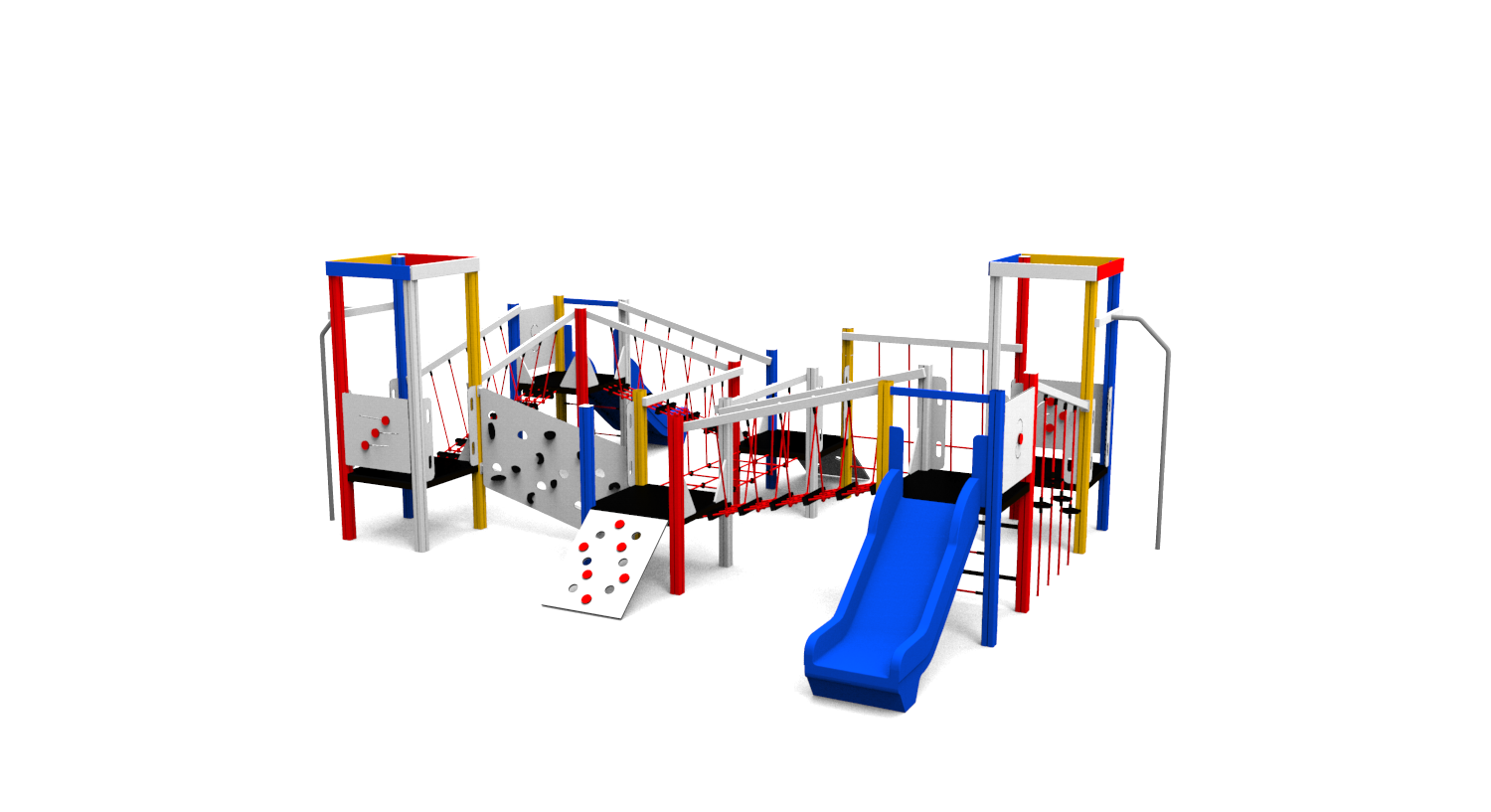

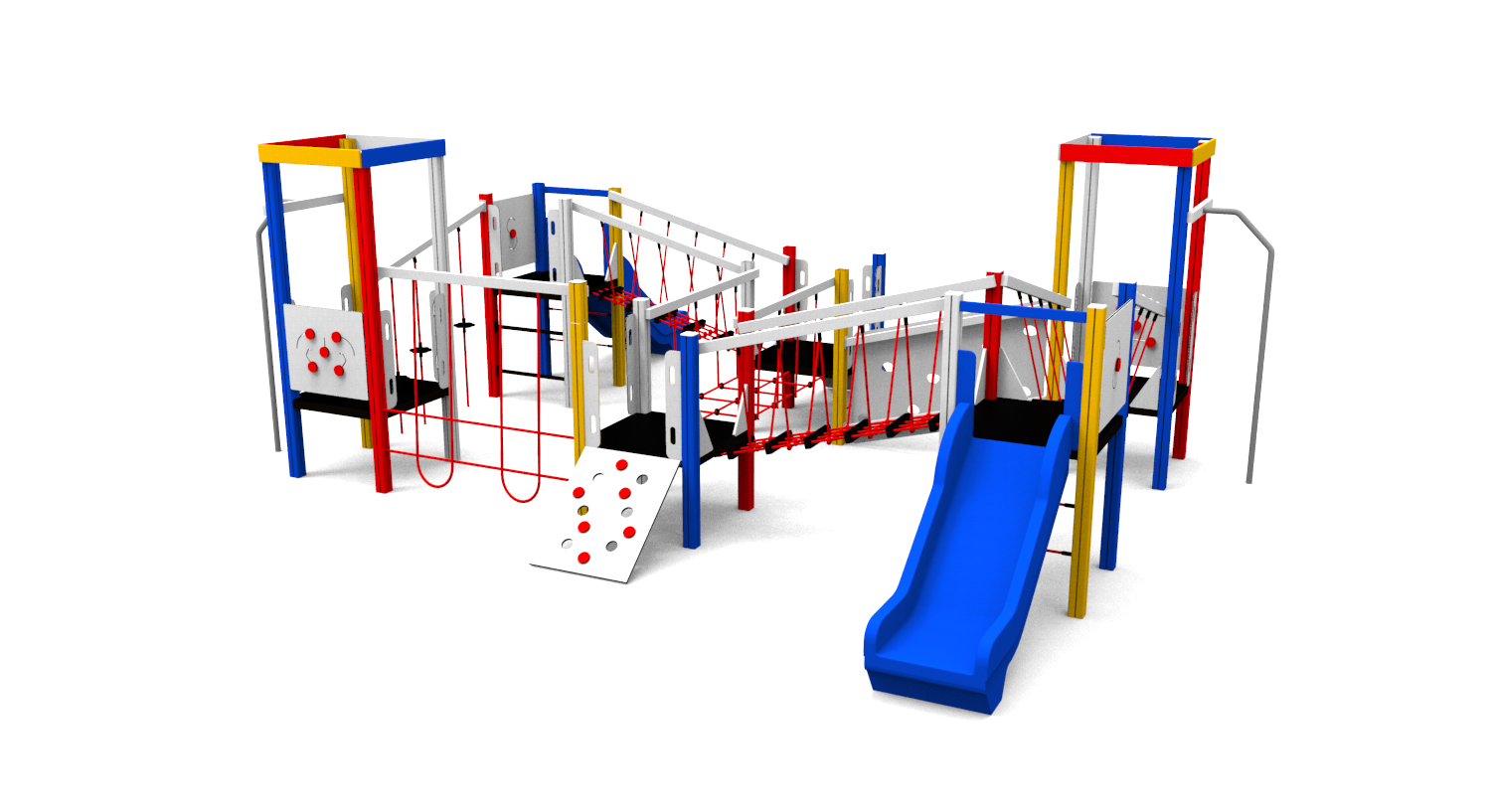

Six tower play structure containing: two wobbly bridges, two tunnels, three slides, rope climber, vertical climbing wall, monkeys bar, stairs.

stock



Product no.: A809.3

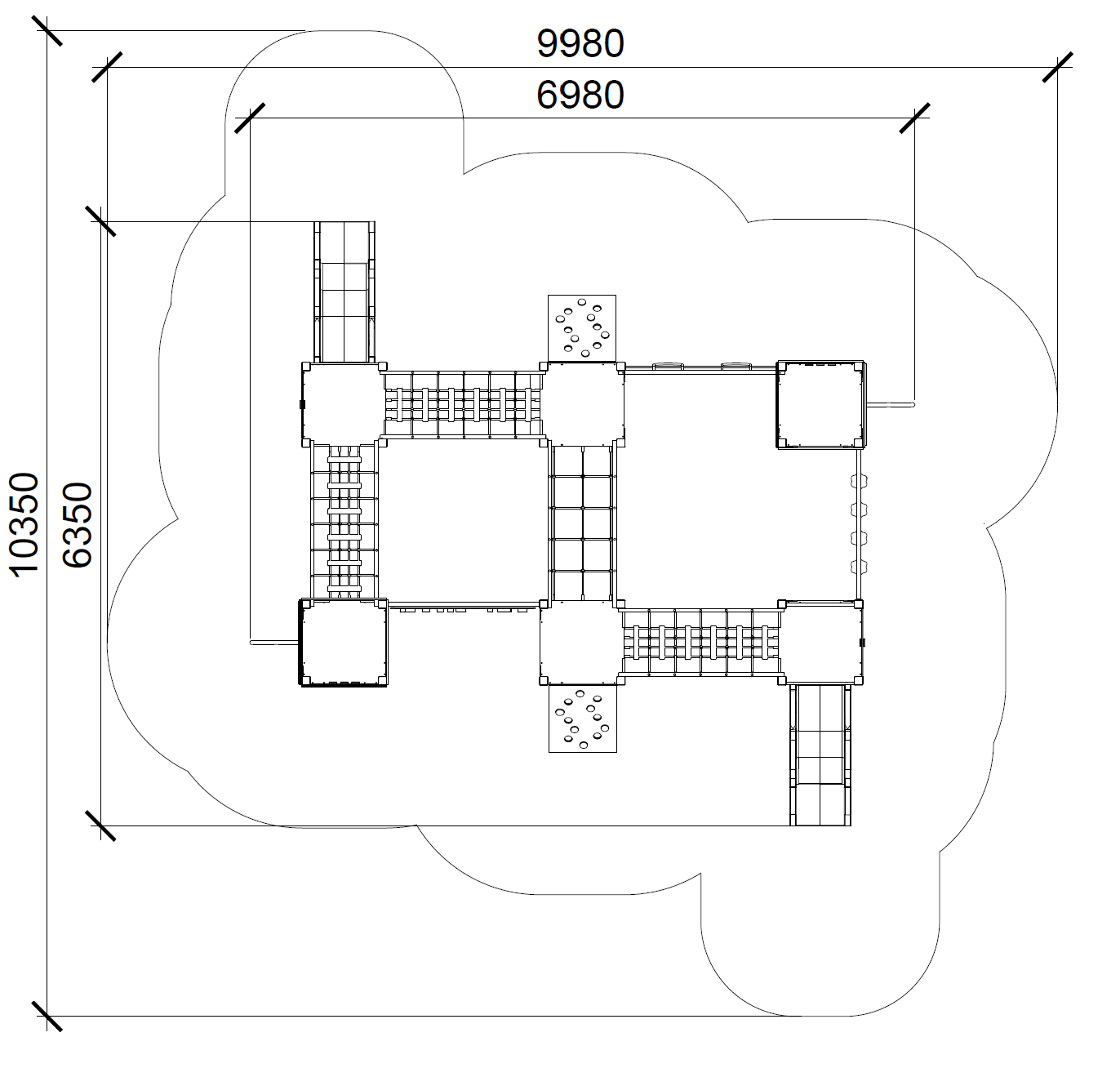

Dimensions: 6980 x 6350 x 2430 mm
Safety area: 9980 x 10350 mm
Critical fall height: 990 mm
User group: 3-12 years
Platform height: 990 mm

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Rope: 16mm PE rope with steel reinforcement
