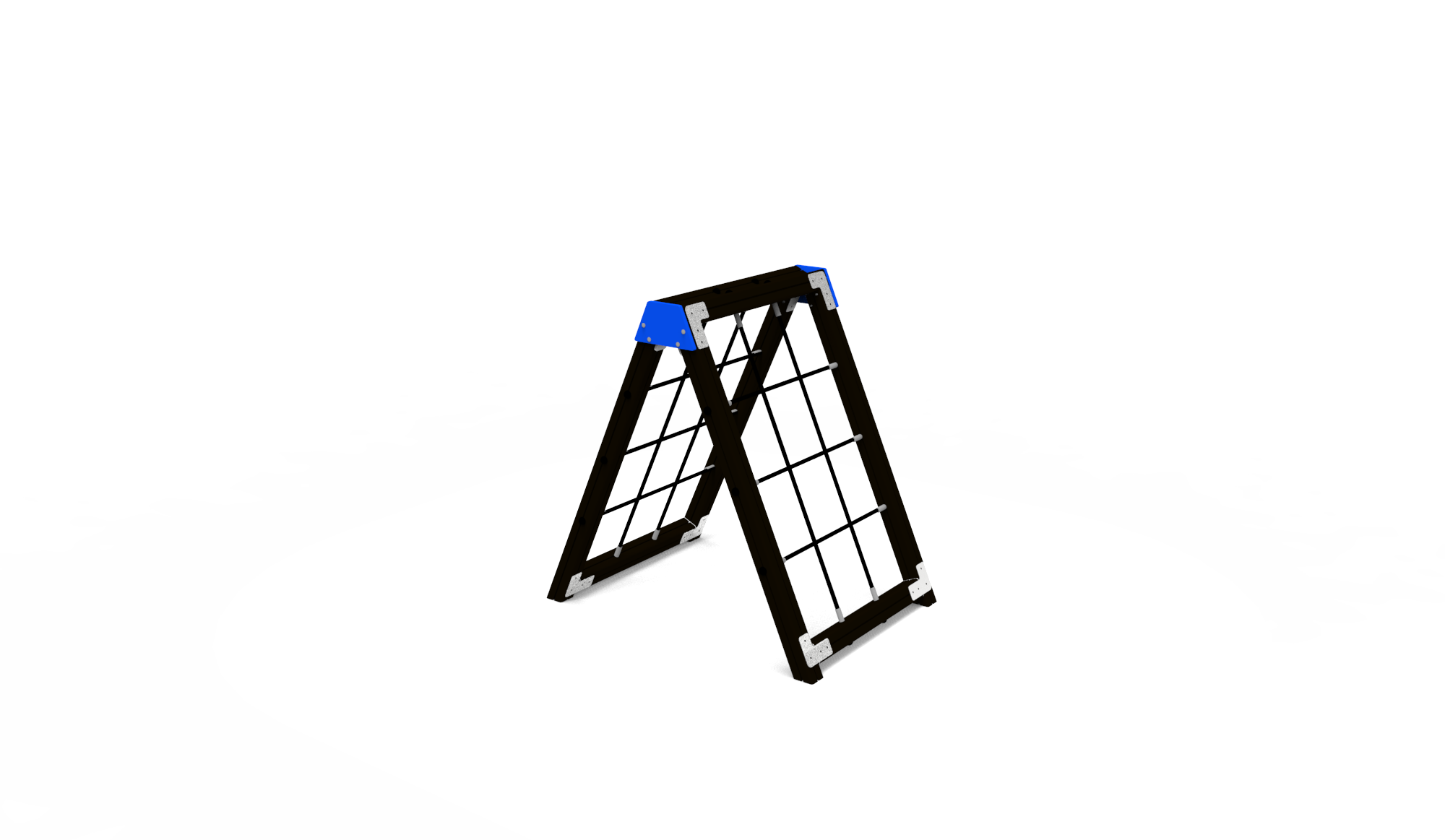

Basic climbing element with rope wall, climber and horizontal bars.



Product no.: A802

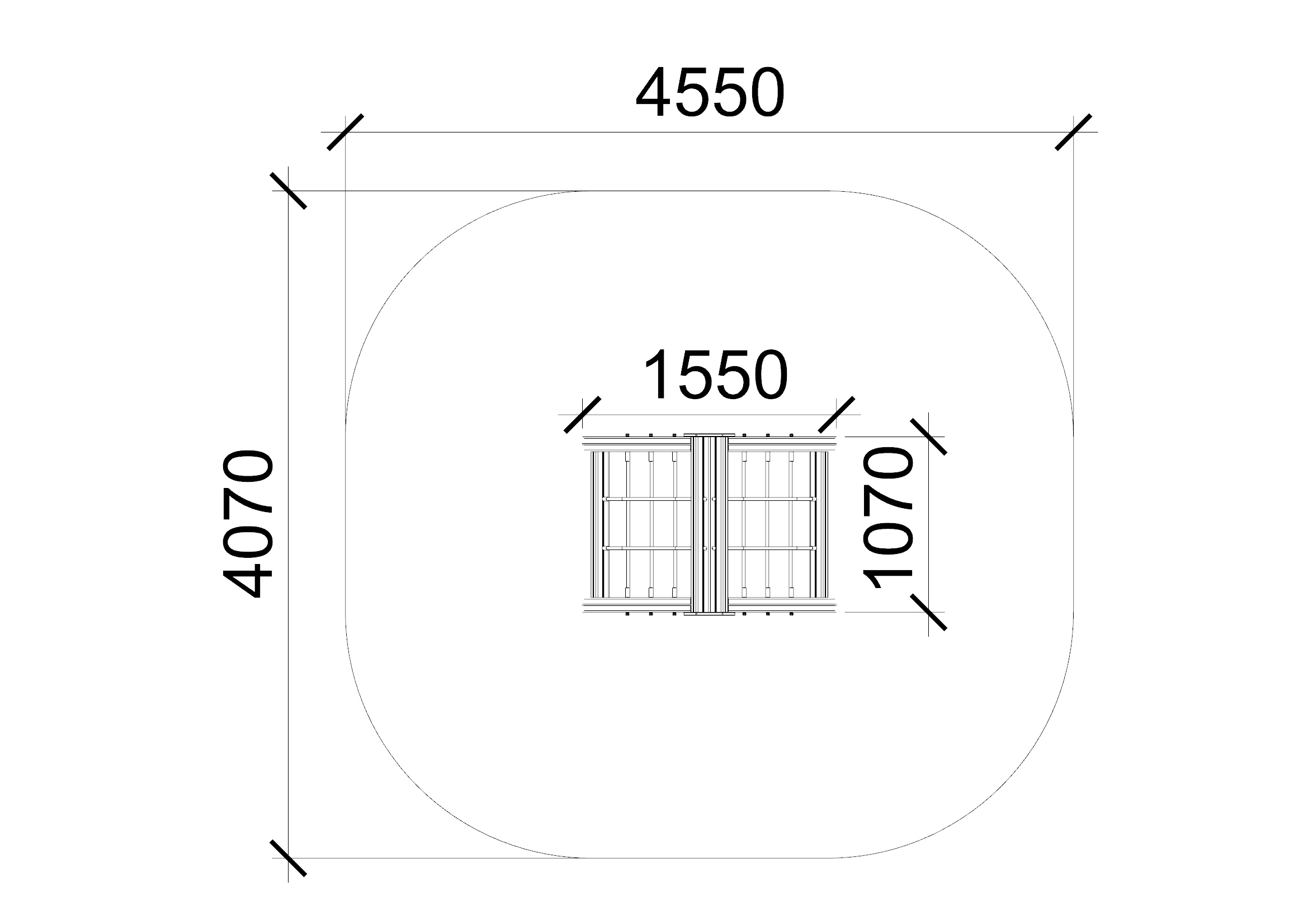

Dimensions: 1550 x 1070 x 150 mm
Safety area: 4550 x 4070 mm / 16m2
Critical fall height: 1500 mm
User group: 3-12 years

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platform: steel frame 880x880mm with wood-composite floor 140x24mm , Stairs: steel frame 670x140mm,, with wood-composite flooring 24mm thick, Handles and other steel parts: Steel with zinked layer and coloured powder coating. Roof and side panels: HDPE sheets wit 12, 15 or 19mm thickness. Slide: Polyethylene, Screws: Stainless steel
