Cable way double




cable ways











                      Cable way double
















stock

















                      Product no.:

                            A1101

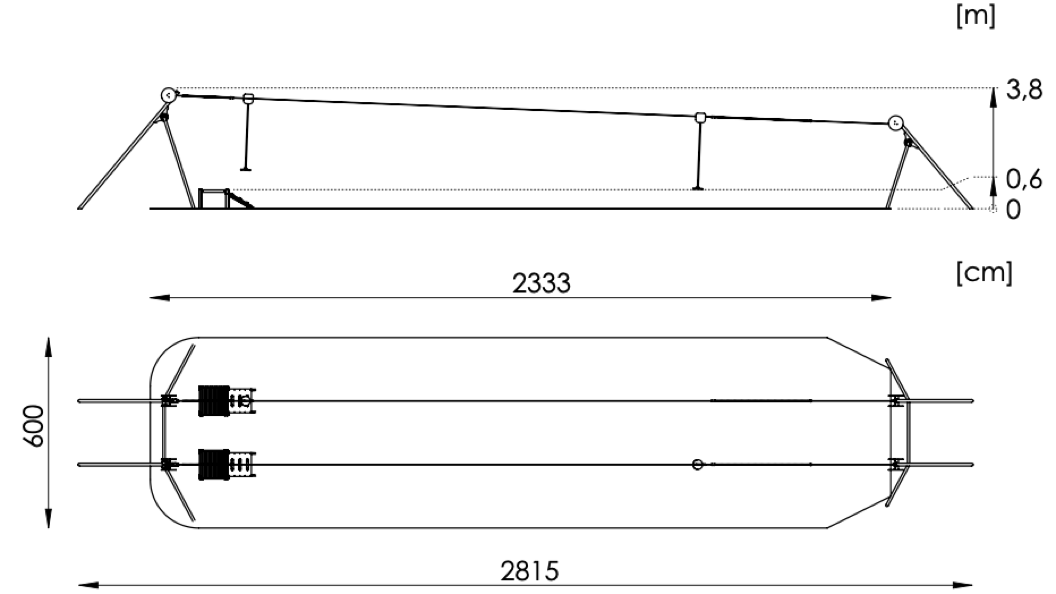

                        Dimensions:


                                    28000 x 6000 x 3800 mm






                        Safety area:


                                    23300 x 6000 mm / 137m2






                        Critical fall height:


                                    1200 mm






                        User group:


                                    from 5 years











































Structural poles: Steel profile 89mm, and 76mm, powder coated with zinc primer in Ral 9006, Platforms: Aluminium, Stairs: HDPE sheet . Screws / connecting material: Stainless steel.
