REDO

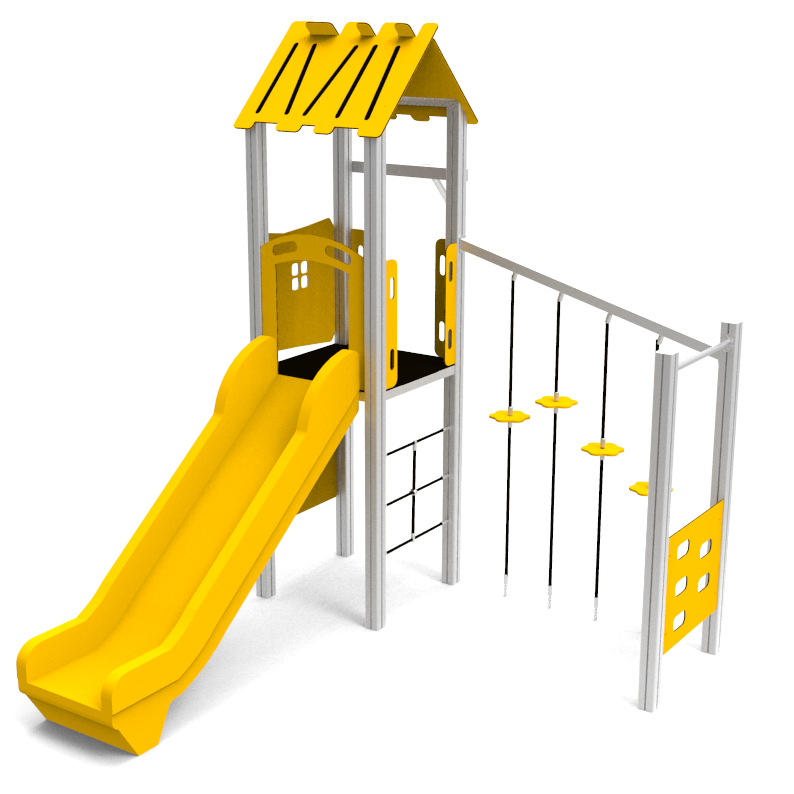

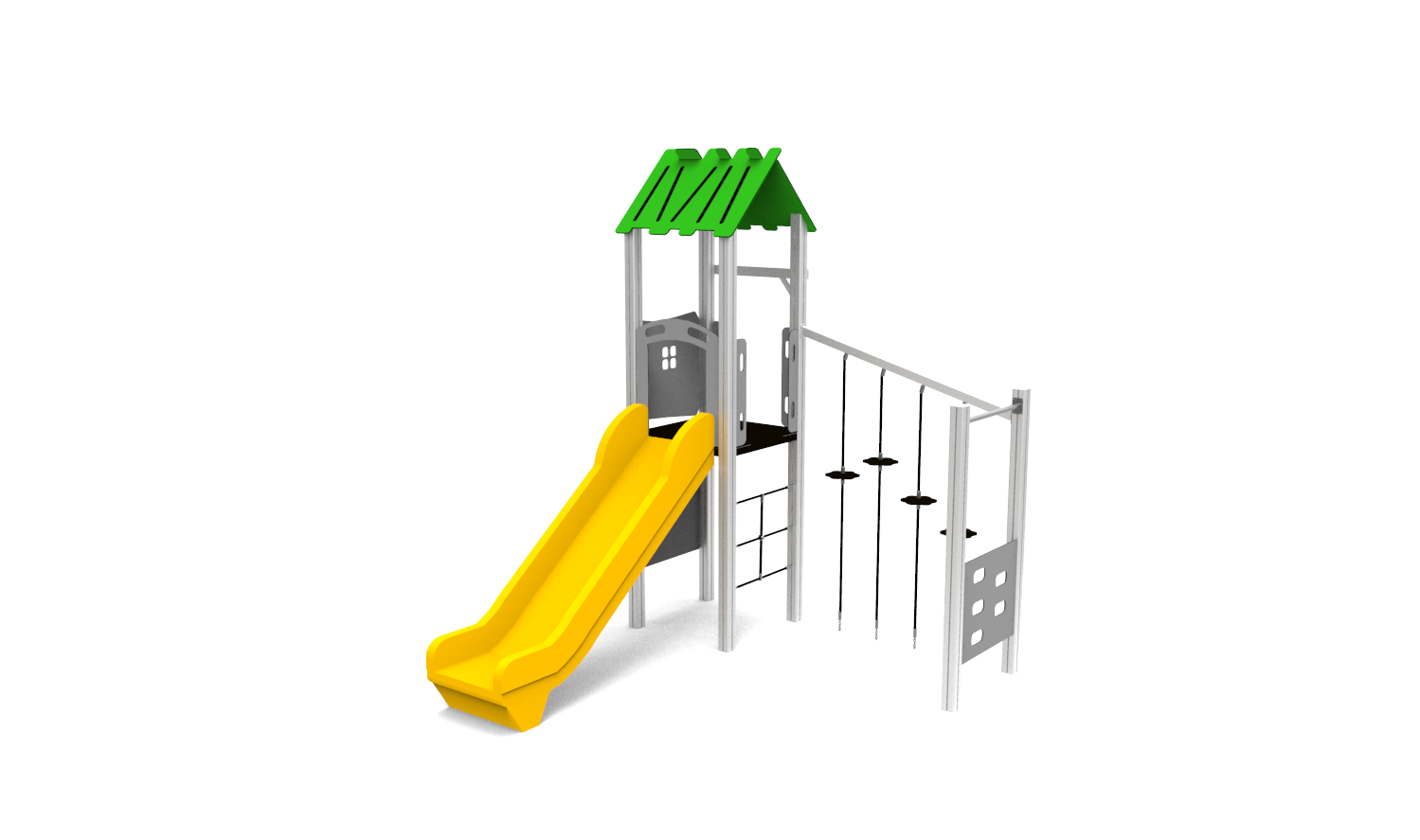

Single tower with 140cm platform height. Includes: vertical climbing wall, interactive panel, firemans pole, balancing steps, rope ladder and slide.

stock



Product no.: A7104 hdpe

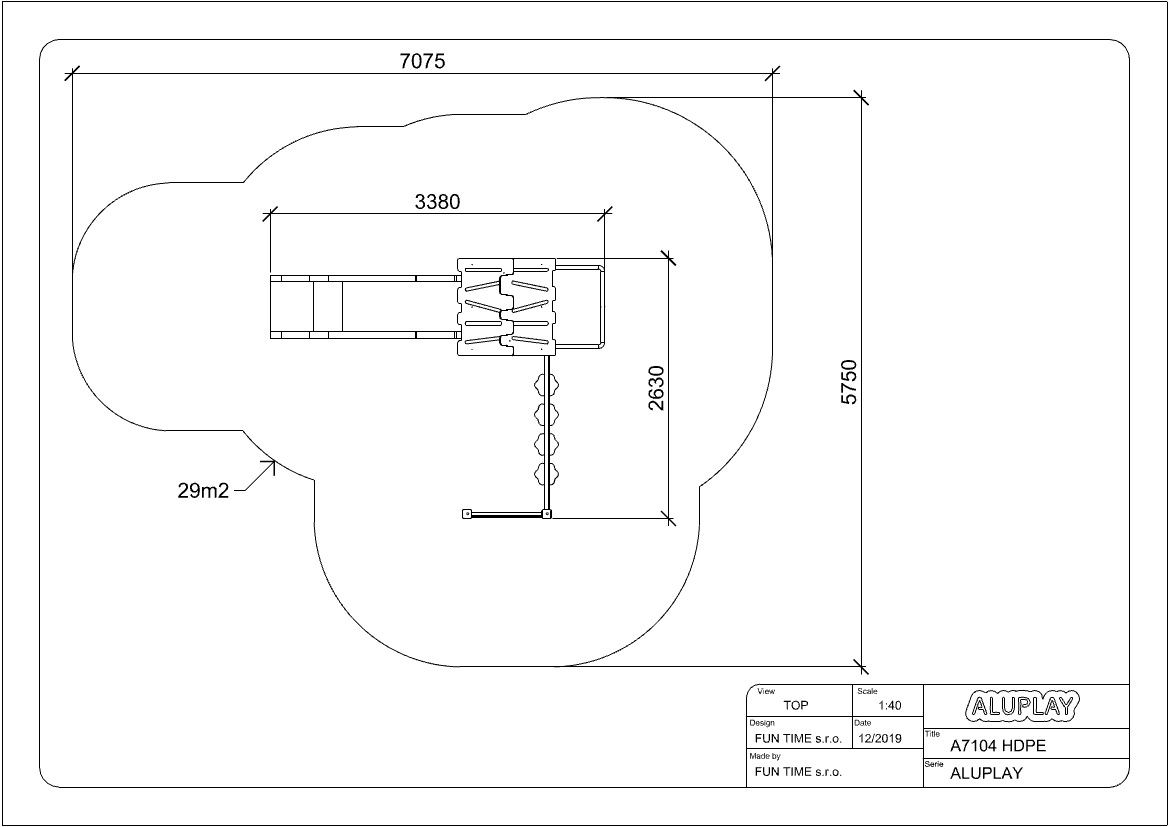

Dimensions: 3380 x 2630 x 3340 mm
Safety area: 7075 x 5750 mm / 29m2
Critical fall height: 1400 mm
User group: 5-12 years
Platform height: 1400 mm

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Stainless steel. Rope: 16mm PE rope with steel reinforcement.
