NINA

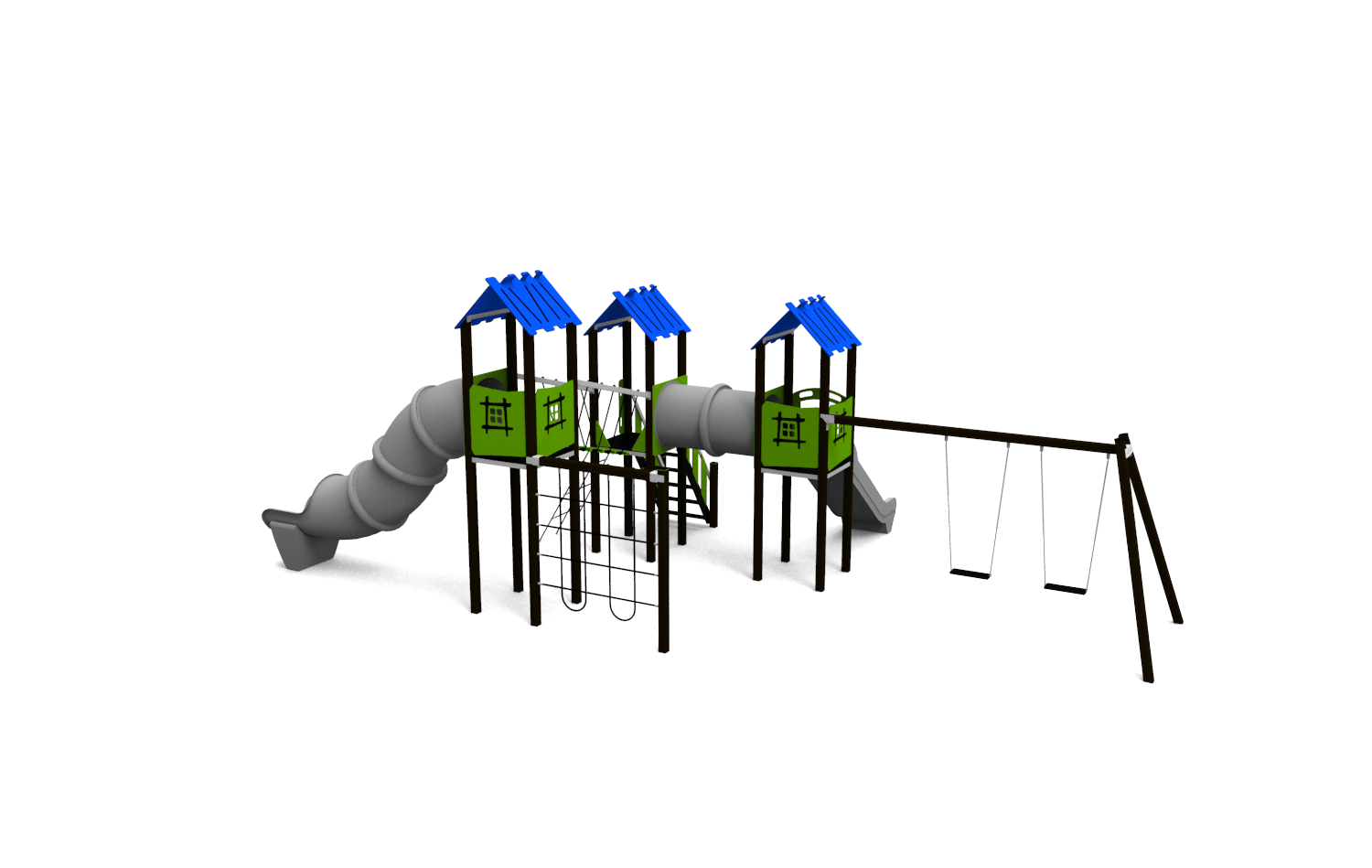

Threee towers with rope bridge, tube slide, regular slide, stairs, two rope climbers and a double swing.











                      NINA
















stock

















                      Product no.:

                            A7563 hdpe






                        Dimensions:


                                    10180 x 5380 x 3740 mm






                        Safety area:


                                    12080 x 9135 mm / 76m2






                        Critical fall height:


                                    1800 mm






                        User group:


                                    3-12 years






                        Platform height:


                                    1800 mm












































Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platforms / stairs: 12mm anti – slip HPL sheet, with stainless steel supports, Handles and bars: stainless steel 304 or 316 grade, Roof, side panels, walls: UV stabilised 3-layer, bi-color HDPE with inner 100% recycled core in 12, 15 or 19mm thickness. Slide: UV-stabilised Polyethylene (PE), Screws and connecting material: Rope: 16mm PE rope with steel reinforcement
