HENRICH

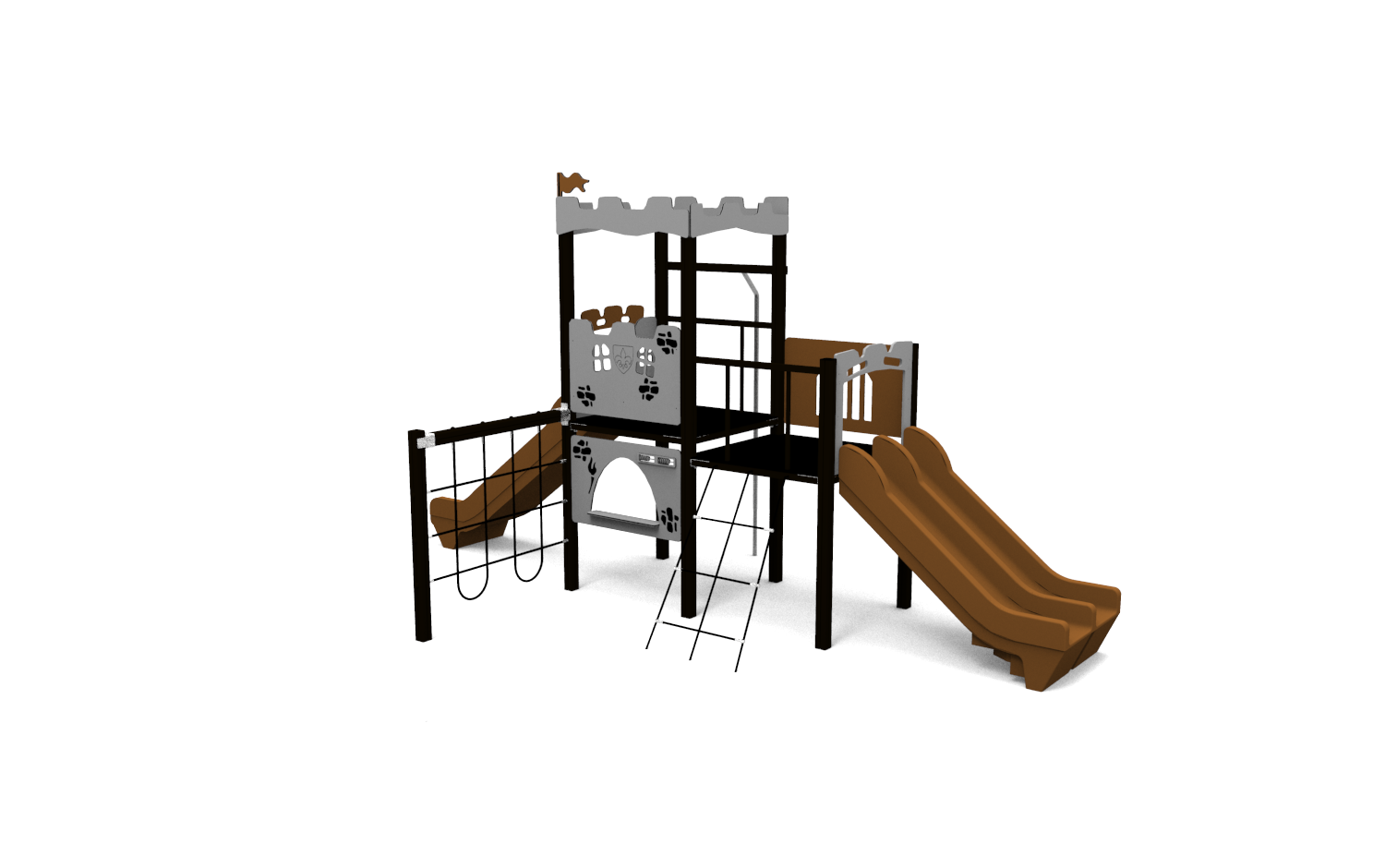

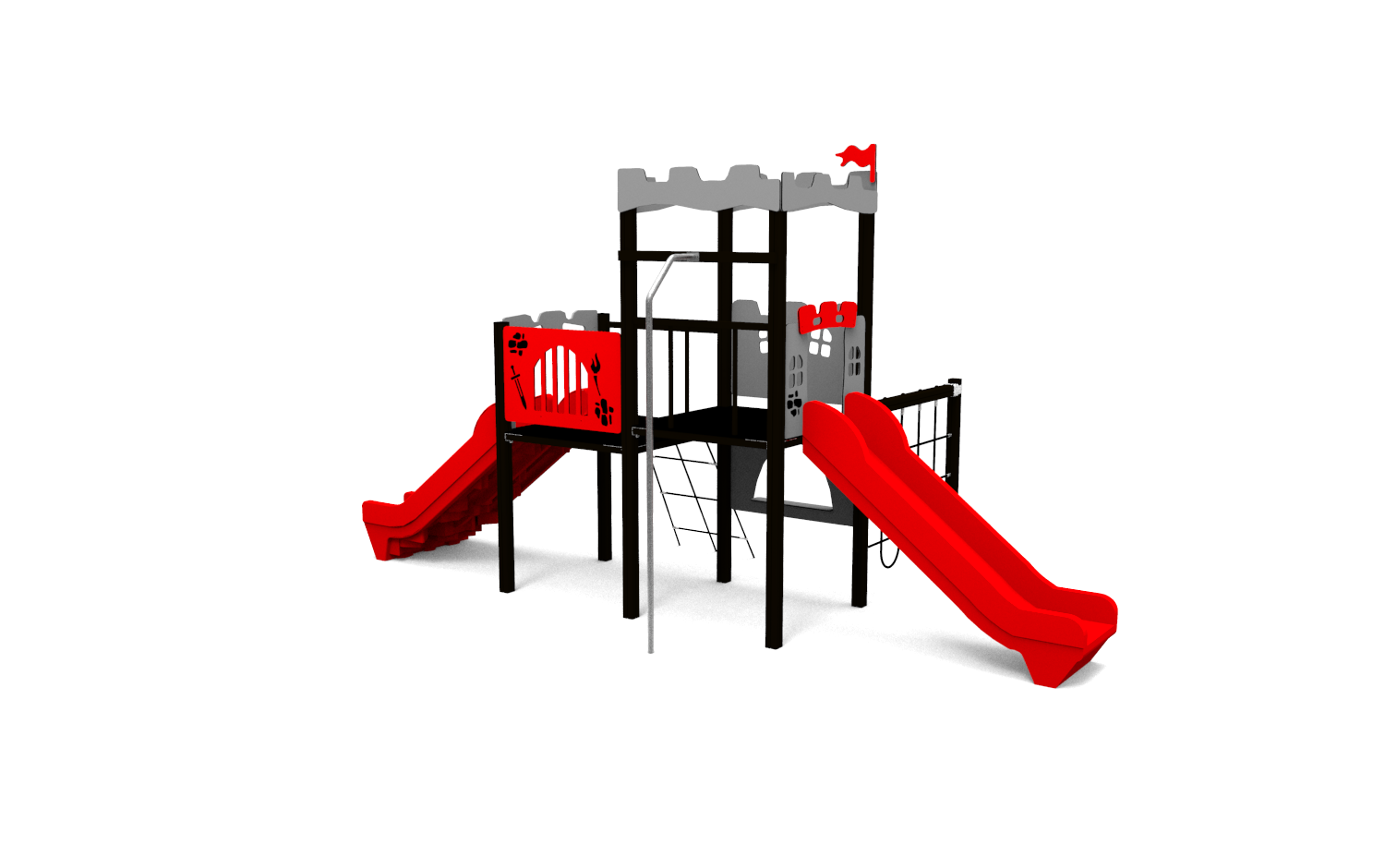

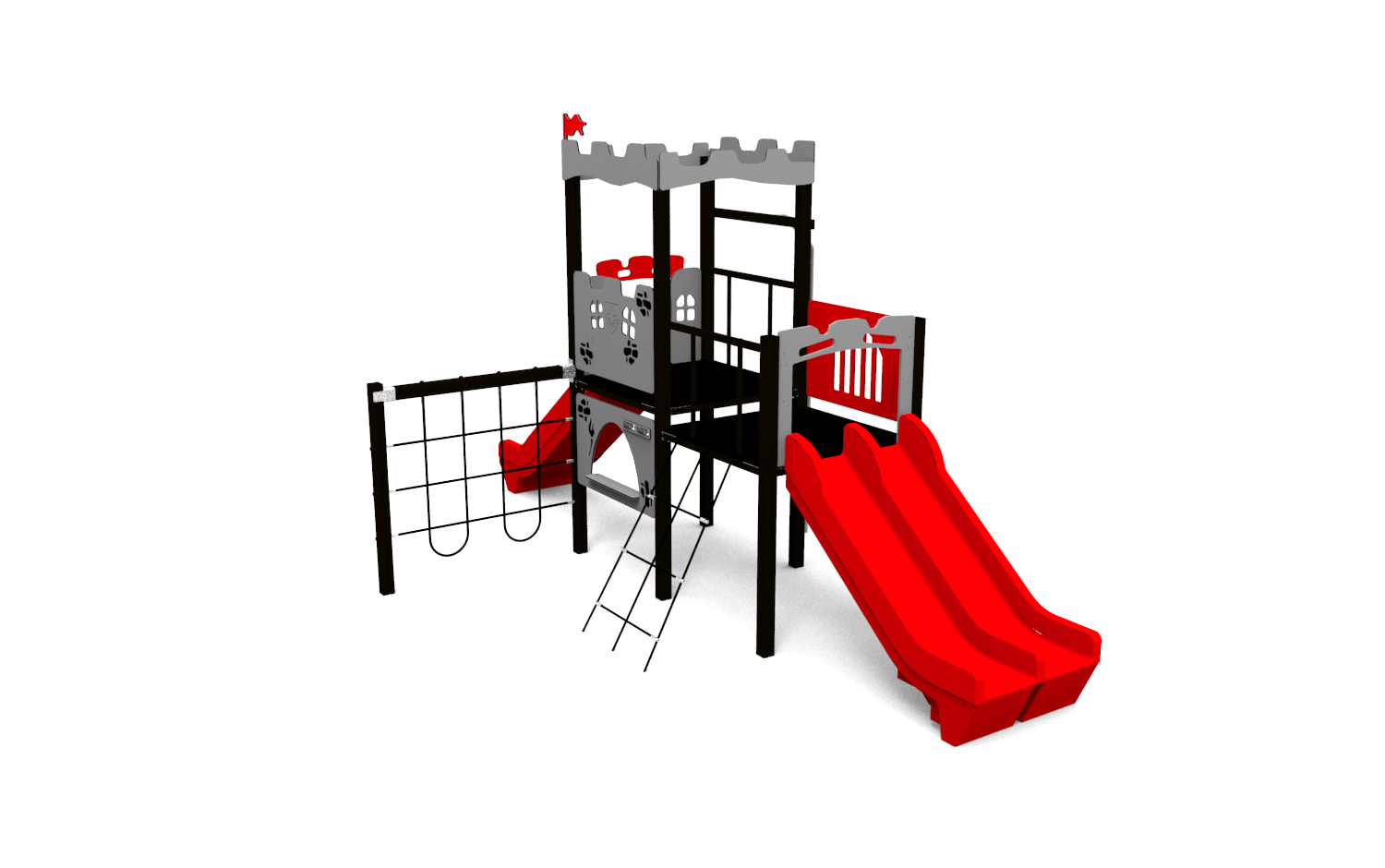

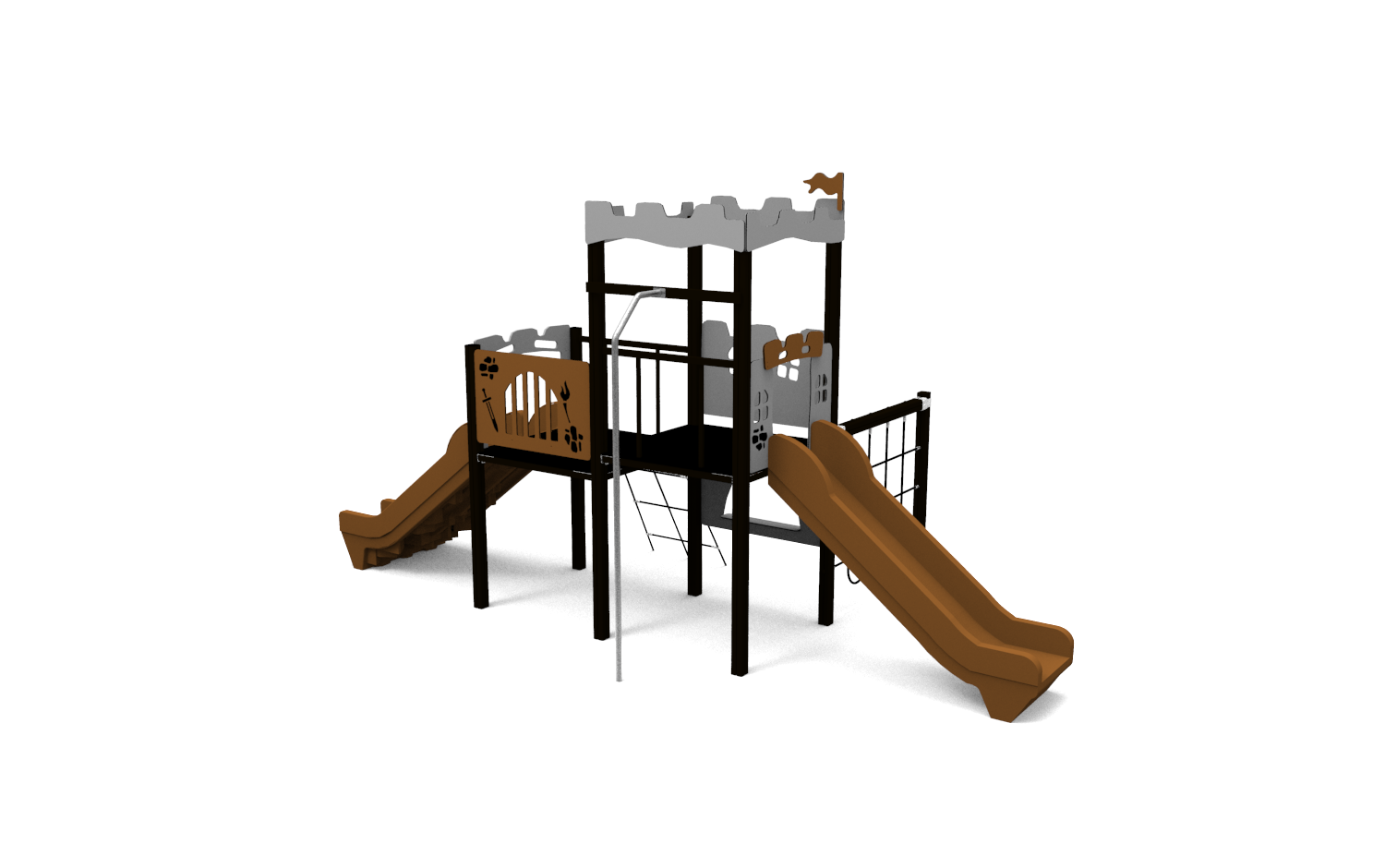

Castle tower with two slides, double slide, climbing wall and rope ladder.

stock



Product no.: A7701.2

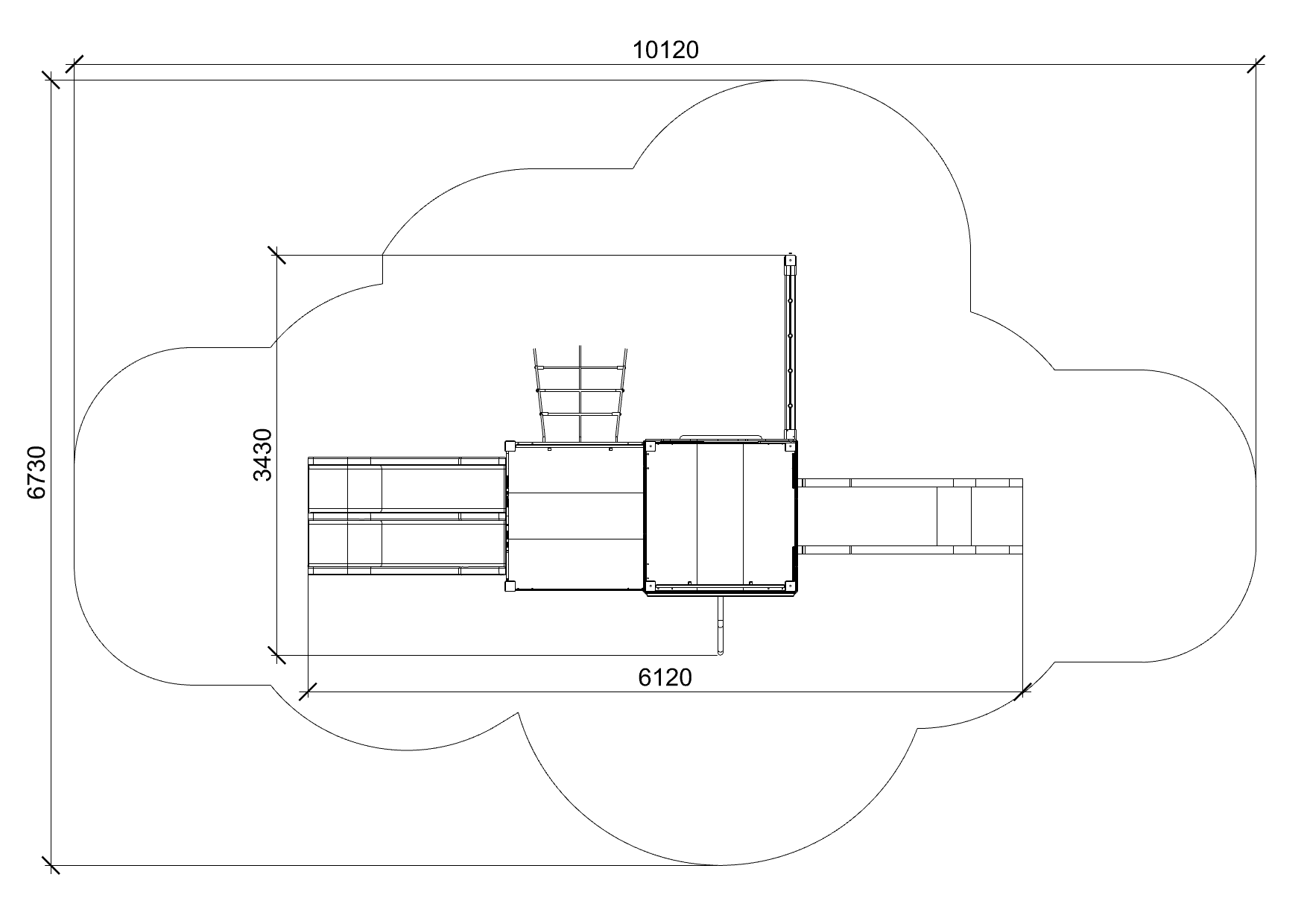

Dimensions: 6130 x 4830 x 3170 mm
Safety area: 10200 x 8500 mm / 57 m2
Critical fall height: 1400 mm
User group: 3-12 years
Platform height: 1400 mm

Structural poles: Aluminium profile 90x90 mm with eloxed surface, Platform: steel frame 1270 x 1270mm with wood-composite floor 140x24mm , Stairs: steel frame 670x140mm,, with wood-composite flooring 24mm thick, Handles and other steel parts: Steel with zinked layer and coloured powder coating. Roof and side panels: HDPE sheets wit 12, 15 or 19mm thickness. Slide: Polyethylene, Screws: Stainless steel.
